Houston Raft/Mat Foundation Design: Geotechnical Logic for Cohesive Soils

Evidence-based design. Reliable delivery.

LEARN MORE

Designing a raft foundation in Houston means confronting the Beaumont Formation head-on. This Pleistocene-age clay dominates the local stratigraphy, and its high plasticity index (often exceeding 25) drives every structural decision we make. Under ASCE 7-22 and the IBC, any stiffened raft on expansive soil must account for edge-lift and center-lift deformation modes—these aren't academic footnotes, they're the difference between a slab that stays level and one that cracks within two seasonal cycles. Houston's flat topography and slow-draining clay basins create perched water tables that fluctuate wildly between summer droughts and tropical downpours. A proper geotechnical investigation for a raft foundation here doesn't just log moisture content; it quantifies the unsaturated swell pressure and the depth of the active zone, which in Harris County can extend to 12 feet below grade. Before finalizing the structural design, we typically cross-check the subgrade modulus with in-situ CPT testing to validate the laboratory-derived consolidation curves.

A raft foundation on Beaumont clay isn't a structural slab—it's a soil-structure interaction system governed by heave prediction.

Our service areas

Process overview

On Houston's Gulf Coast clay, we consistently observe that the top 5 to 8 feet of fat clay (CH) will heave unless the raft is designed with sufficient rigidity and edge thickening. The key isn't just thickness—it's the interaction between the soil's swelling pressure and the foundation's bending stiffness. We parameterize this using the PTI DC10.5 method, which models the soil as a series of nonlinear springs. For a typical commercial slab-on-grade in the Energy Corridor, we specify a beam depth of at least 30 inches at the perimeter and a minimum 10-inch interior slab thickness. Joint spacing is critical: we push for post-tensioned designs that eliminate saw-cut joints, which in Houston's humidity become entry points for vapor migration. A well-executed raft design also requires a capillary break—either a 4-inch layer of clean crushed limestone (TxDOT Grade 2) or a 15-mil vapor retarder placed directly below the slab. The interplay between structural stiffness and the soil's modulus of subgrade reaction (kv) is where most generic designs fail; we calibrate this value using plate load tests or, more commonly, a correlation from our triaxial compression data on undisturbed Shelby tube samples.
Houston Raft/Mat Foundation Design: Geotechnical Logic for Cohesive Soils
Technical reference — Houston

Local context

Eighteen months after completion, a tilt-wall building near the Houston Ship Channel exhibited 0.75 inches of differential movement. The cause was not a flaw in the structural design but an incorrectly characterized moisture profile. The original geotechnical report assumed the water table was stable at 15 feet; in reality, after the first hurricane season, a perched water lens at 6 feet caused the near-surface clay to swell. For raft foundations in Houston, the most significant danger is misjudging the long-term moisture equilibrium beneath the slab. Per ASCE 7, the 'maximum considered groundwater level' must be used in design, and in flat coastal plains, this level can shift drastically due to landscape irrigation or broken utility lines. A thorough design requires moisture-conditioned triaxial testing per ASTM D4767 to define effective stress parameters, along with swell-consolidation testing per ASTM D4546 to capture both heave and subsequent recompression. Ignoring the suction profile in the upper vadose zone can turn a theoretically stable mat into a dish-shaped failure.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

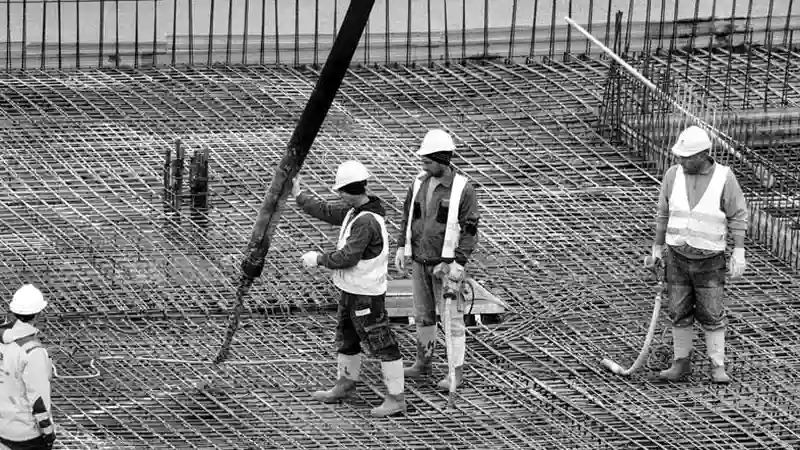

Visual overview


Reference standards

Relevant standards include ASTM D4546-21 for one-dimensional swell or collapse tests, PTI DC10.5-19 for post-tensioned slab-on-ground design, ACI 360R-10 as a guide for slabs-on-ground, ASCE 7-22 for minimum design loads, and IBC 2021 Chapter 18 covering soils and foundations.

Technical data


ParameterTypical value
Design StandardACI 360R, PTI DC10.5, IBC Chapter 18
Soil Type (Predominant)Beaumont Formation fat clay (CH), PI > 25
Active Zone Depth8 to 12 ft below grade (Harris County)
Slab Thickness (Interior)10 to 14 in for PT slabs
Edge Beam Depth30 to 42 in minimum
Subgrade Modulus (kv)50-150 pci (varies with undrained shear strength)
Vapor Barrier15-mil polyethylene or equivalent, per ASTM E1745
Fill MaterialTxDOT Grade 2 limestone, 4 in minimum compacted lift

Questions and answers

What factors determine the cost of a raft foundation design in Houston?

The cost for the structural design and geotechnical package ranges from US$1,160 to US$4,150. This depends on factors such as the slab footprint, the number of borings required, and whether a full post-tensioning analysis is necessary.

How do you verify the stiffness of the compacted fill under the raft?

We conduct nuclear density gauge tests in accordance with ASTM D6938 on each lift, supplemented by proof-roll observations. For critical structures, a plate load test per ASTM D1195 is used to verify the in-situ modulus of subgrade reaction.

What is the typical design life of a raft foundation on Houston clay?

A stiffened raft, designed for a 50-year service life per IBC, requires proper moisture control and a stabilized active zone. The key to preventing differential edge heave is maintaining consistent soil moisture around the perimeter.
